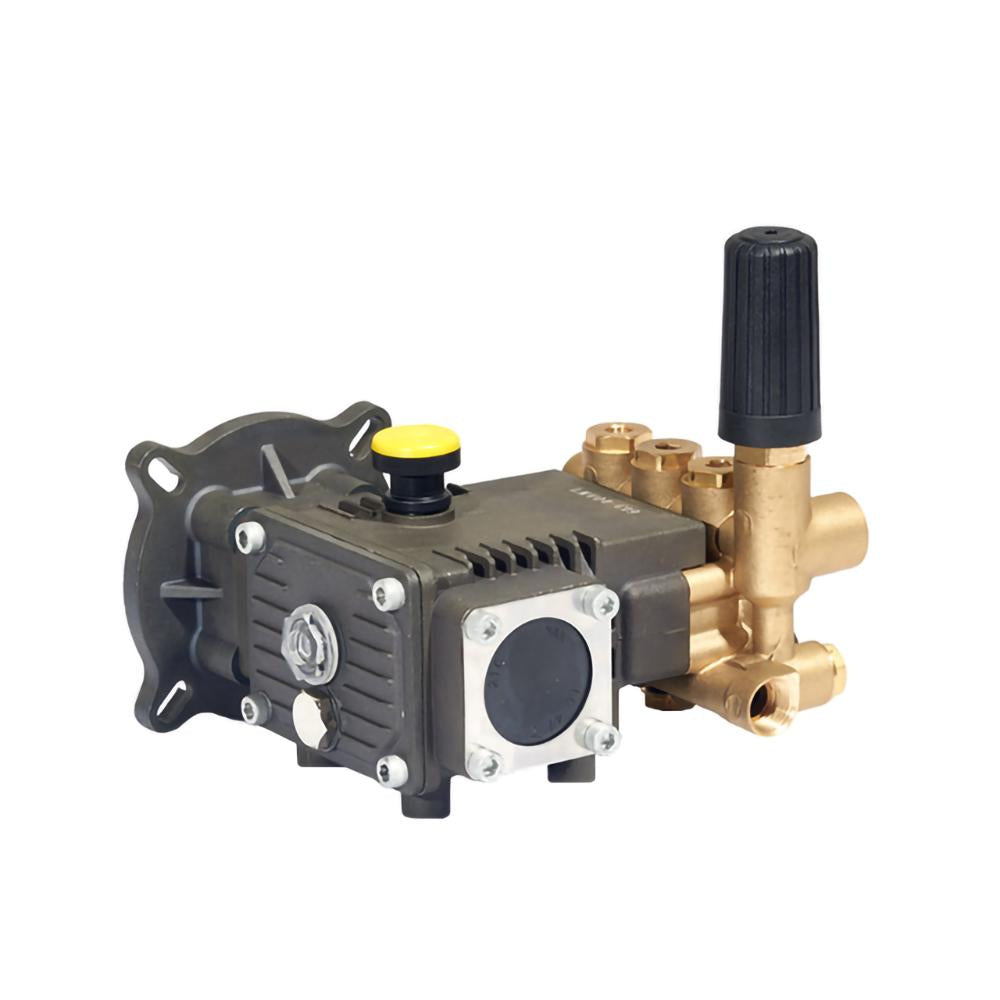

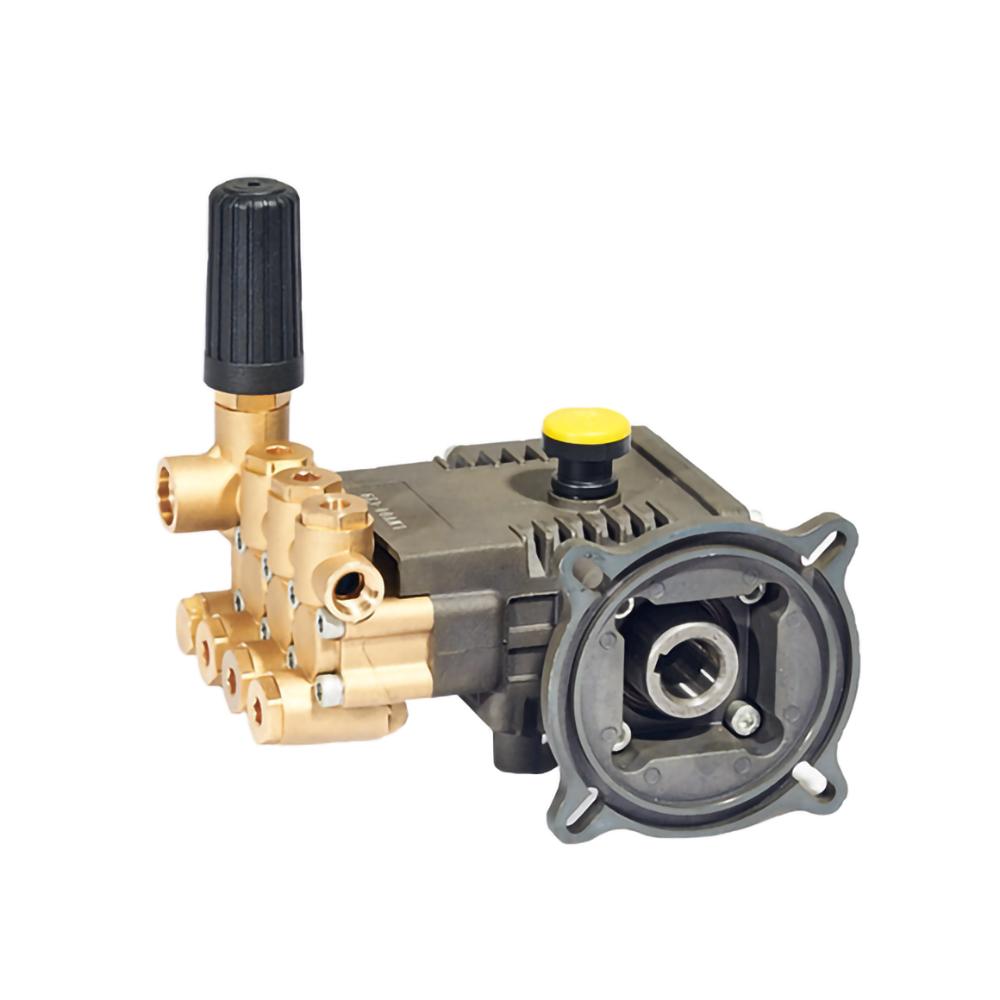

Plunger Pump 100bar Spray Atomization High Pressure Gasoline Engine Car Washer Pump Head LMV

$230.99

Model: 1010

1010
Add to Wishlist

visamasteramazon paymentsamerican expressapple paypaypal
Description

Specification
价格_CA3CG8

Working Principle
◎ The power is through the crank linkage mechanism, the rotational motion of the crankshaft is transformed into the reciprocating movement of the plunger;
◎ When the plunger retreats, due to vacuum suction, the inlet valve opens and the outlet valve closes, and the water is sucked into the cylinder;
◎ When the plunger advances, due to the increase in the water pressure in the pump, the inlet valve is closed, the outlet valve is opened, and the high-pressure water is discharged from the outlet valve through the high-pressure pipe;
◎ The pump pressure is established depending on the size of the damping at the outlet of the pump, and the damping is high and the pressure is low;

Application
◎ High pressure cleaning machinery;
◎ Agriculture, forestry and plant protection machinery;
◎ Water-saving irrigation machinery;
◎ Pressure calibration equipment;
