Description
Specification
◎ Voltage: 24VDC
◎ Ambient Temperature: 0 ~ 50℃
◎ Relative Humidity: ≤ 90%
Liquid Pump
◎ Load Current: ≤ 550mA
◎ Flow Rate Of The Max Pumping Height: 1.5 L/min
◎ Max Pumping Height: 2 mH2O
◎ Flow Rate Of The Max Drainage Height: 0.8 L/min
◎ Max Drainage Height: 9 mH2O
◎ Media Temperature: 5 ~ 50℃
Vacuum Pump
◎ Load Current: ≤ 500mA
◎ Average Flow: 1.6 L/min
◎ Relative Vacuum: -15kPa
◎ Media Temperature: 0 ~ 50℃
Feature
◎ Brushless motor, low electromagnetic interference.
◎ Oil-free pump, no pollution transmission.
◎ Maintenance-free and corrosion-resistant.
Application
◎ Medical Equipment;
◎ Environmental Detection;
◎ Experimental Equipment;
◎ Food Chemical Industry;

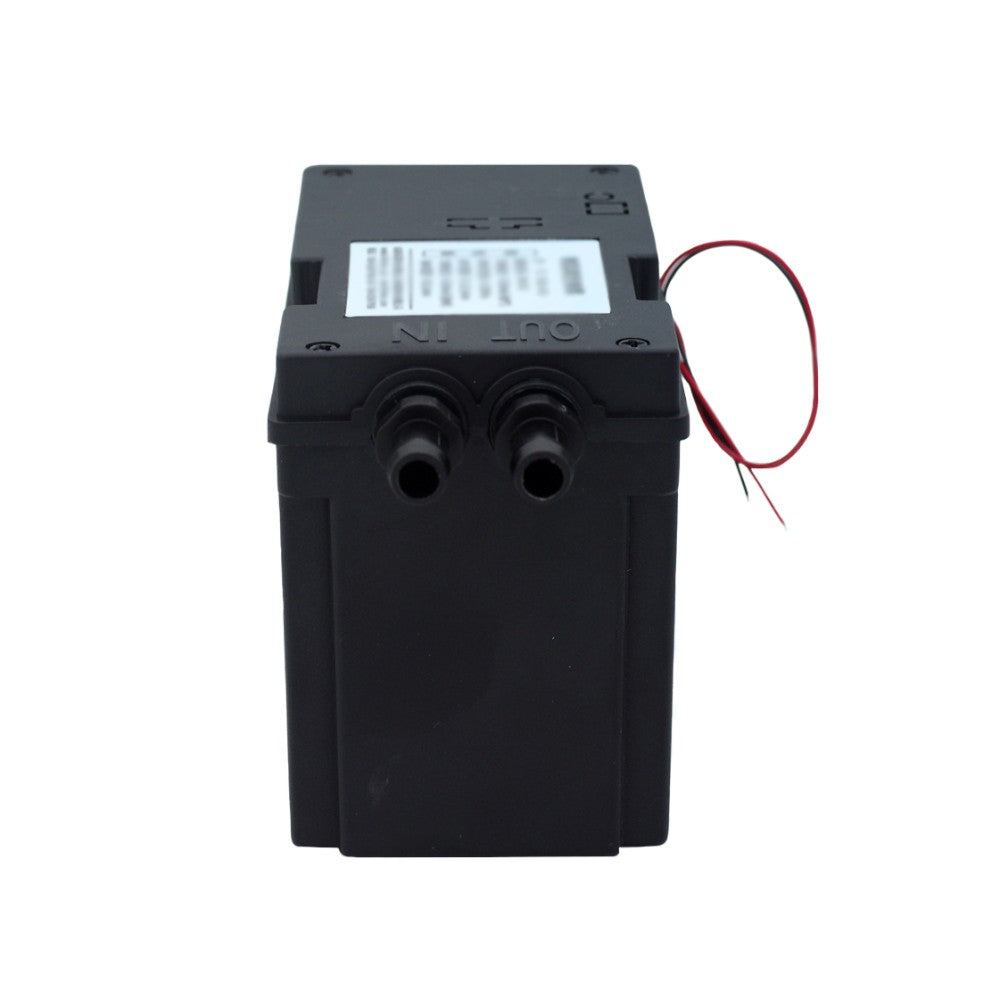

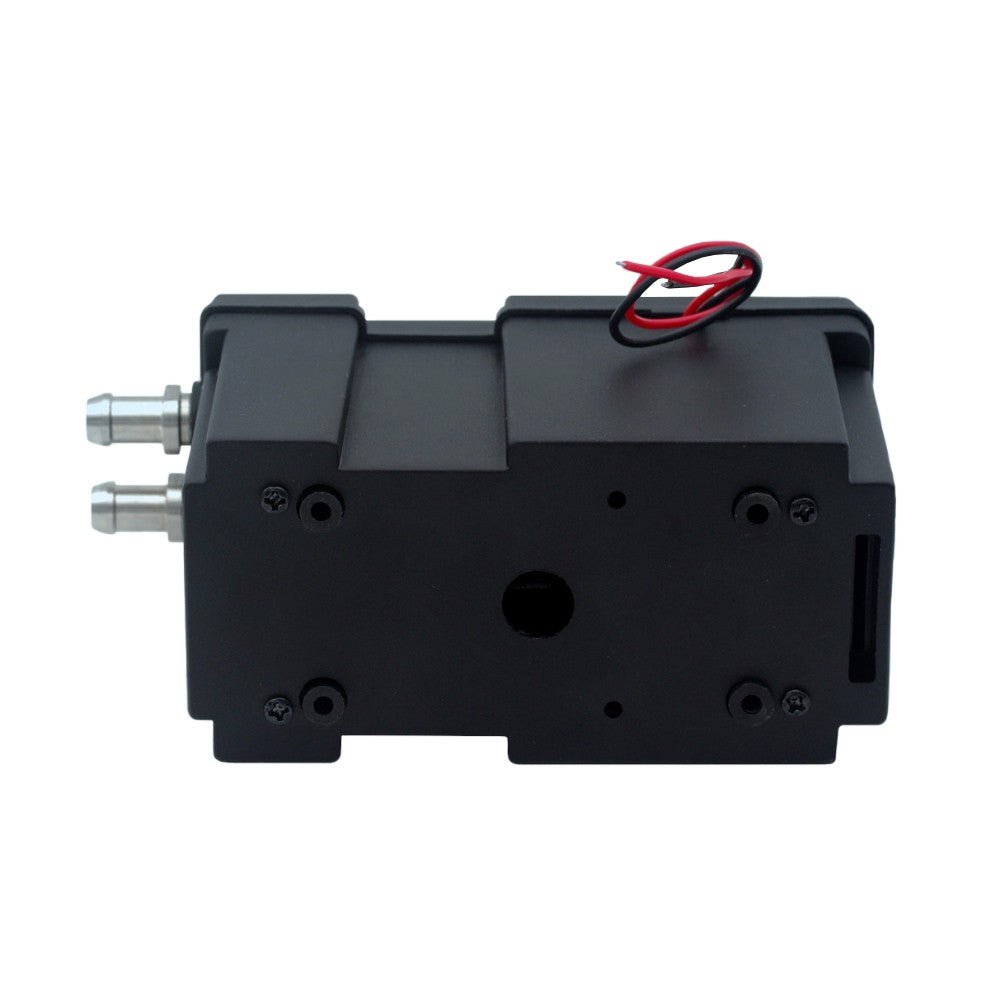

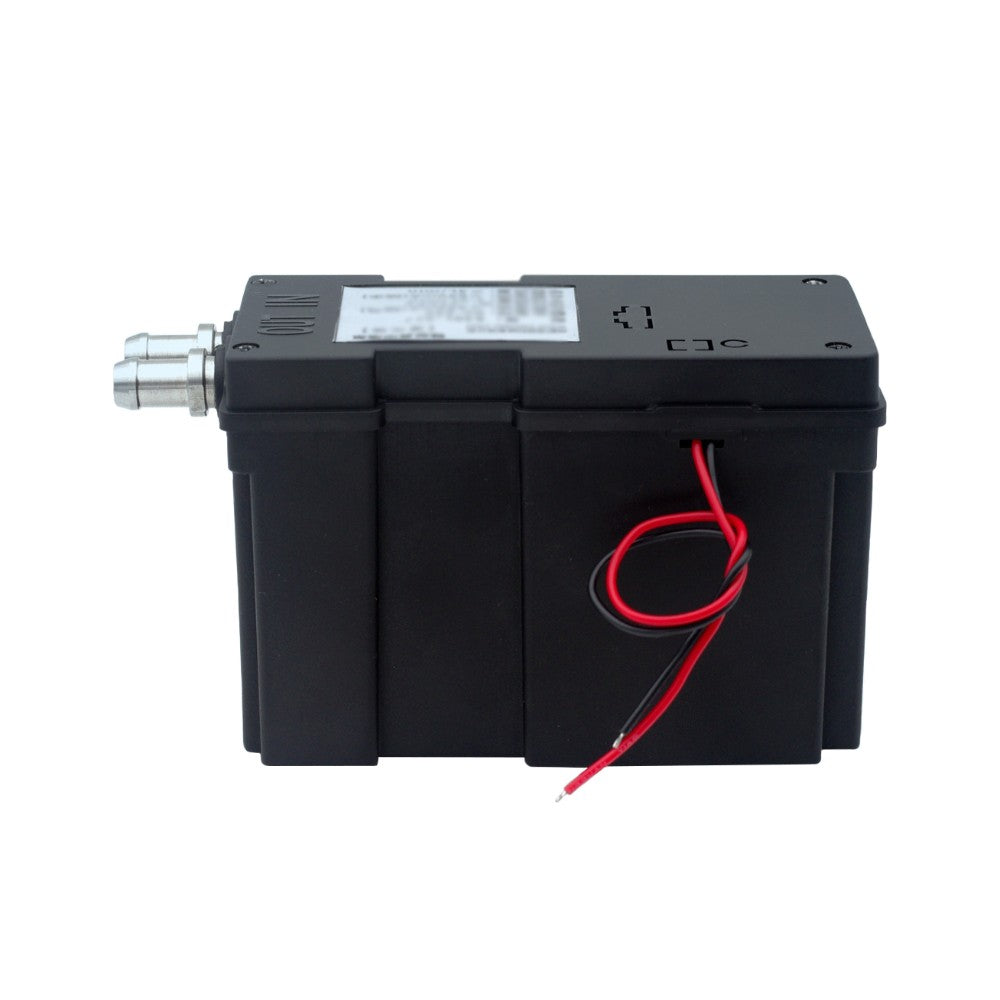

Micro DC Vacuum Pump 24V Diaphragm Pump S36M41J Industry/Experiment Equipment Water And Air Dual-use
$125.99
