JLFlo 1/2" 3/4" 1" 3 Way L Port 12V/24VAC/DC 110V-230VAC Brass Normally Closed Position Feedback Electrical Motorized Ball Valve

$65.99

Voltage: 12V/24V AC/DC

12V/24V AC/DC
110-230VAC

size: 1/2 inch

1/2 inch
3/4 inch
1 inch
Add to Wishlist

visamasteramazon paymentsamerican expressapple paypaypal
Description

Technical Parameter:

◎Model: T15-B3L-B, T20-B3L-B, T25-B3L-B, T15-B3L-C, T20-B3L-C, T25-B3L-C;
◎Working Voltage: 9-24VAC/DC, 110V-230VAC
◎Valve Dimension:

  • 1/2"NPT Female Thread Connection,12mm(0.47in) ReduceBore,
  • 3/4"NPT Female Thread Connection,15mm(0.59in) ReduceBore,
  • 1" NPT Female Thread Connection,18mm(0.71in) ReduceBore;

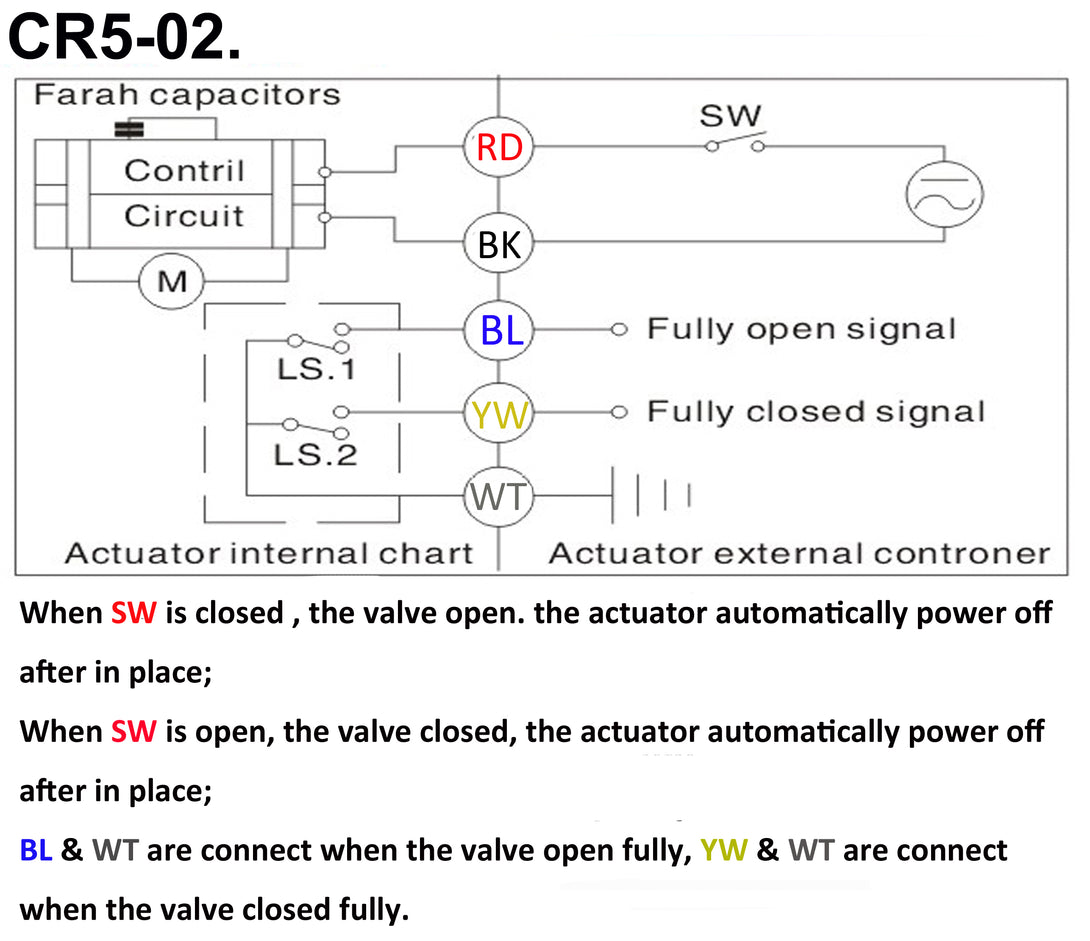

◎Wiring Diagram:CR5-02(2 Wires Control, Installed With Position Feedback Wires);
◎Valve Body Material: Brass;
◎Actuator Material: Engineering Plastics;
◎Open/Closed Time: Less Than 7Sec.;
◎Suitable Media: Air, Water, Oil;
◎Power: Max 2 Watts;
◎Manual Override: 12V/24VAC/DCYes, 110V-230V No;
◎Indicator: Yes;
◎Working Current: Max 500Ma When Action, Cut Off Current When Arrived At Place;
◎Max. Torque Force For Aucator: 2 N.M;
◎Cables Length: 0.5 Meters;
◎Max Working Pressure:145PSI(1.0MPA);
◎Liquid Temperature: 32°~212°F (0°~100°C);
◎Environment Temperature:5~122F(-15°~50°C);

Application:
◎HVAC;
◎Water Treatment;
◎Chemical Process;
◎Small Industrial Equipment For Automatic Control;
◎Replacing Solenoid Valve, Particularly When Solenoid Cannot Work Reliably;
◎Automatic Control Systems;
◎Efficient Water-Saving, Water Equipment;
◎Solar Hot Water Project;
◎Regular Watering The Flowers, Timing Humidifying, Timing of Drainage of Air Compressor.

Features:
◎Smart Shape, Perform Reliably, Large Output Torque, As Long As 50000-100000 Times , Convenience For All Kinds Of Requirements;
◎Float Ball design, No Leak, Large Flow, The Valve is Bi-directional Ball Valve , Regardless of Inlet And Outlet , Most Suitable for Heavy Dirt and Long Time No Action;
◎The Conditions That Solenoid Valve Can Not Be Worked;
◎High Protection Class, Can Be Worked In Most Conditions;
◎POM Cooperate With Metal Gear, The POM Gear is Used in High-Speed Level to Reduce Noise, At The Same Time Metal Gear is Applied At The Low-Grade To EnsureThe Reliability of The Gear;
◎Electrical and Mechanical Limit Integrated Design, Accurate Localization ,High consistency , Put an End to Swing of Valve.
