HSH-Flo Brass 2 Way DC9-24V 0-5V Proportional Integral Control Motorized Ball Valve Position Feedback

$81.99

size: 1/4"

1/4"
3/8"
1/2"
3/4"
1"
1-1/4"
Add to Wishlist

visamasteramazon paymentsamerican expressapple paypaypal
Description

Technical Parameters

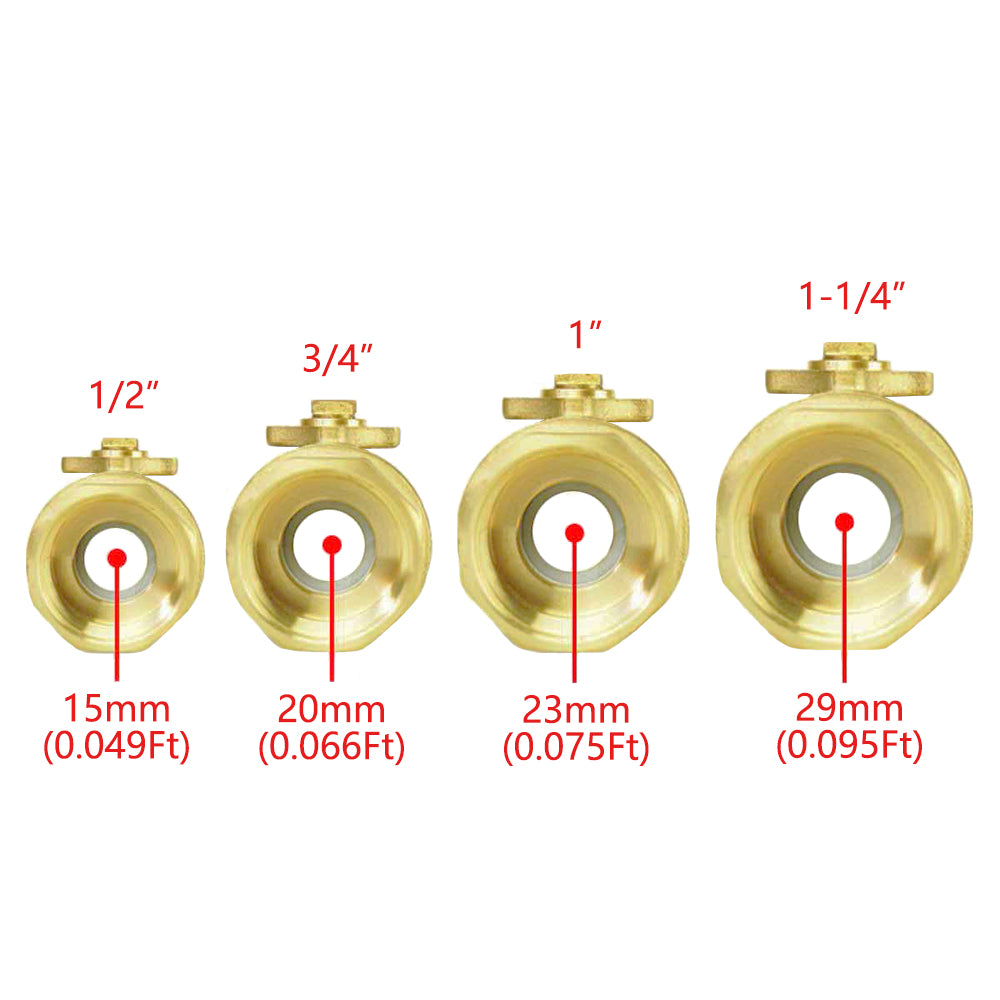

◎Valve Body Diameter: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4" (Optional NPT/BSP)
◎Valve Body Material: Brass
◎Actuator Material: Engineering Plastics
◎Sealing Material: FKM&PTFE

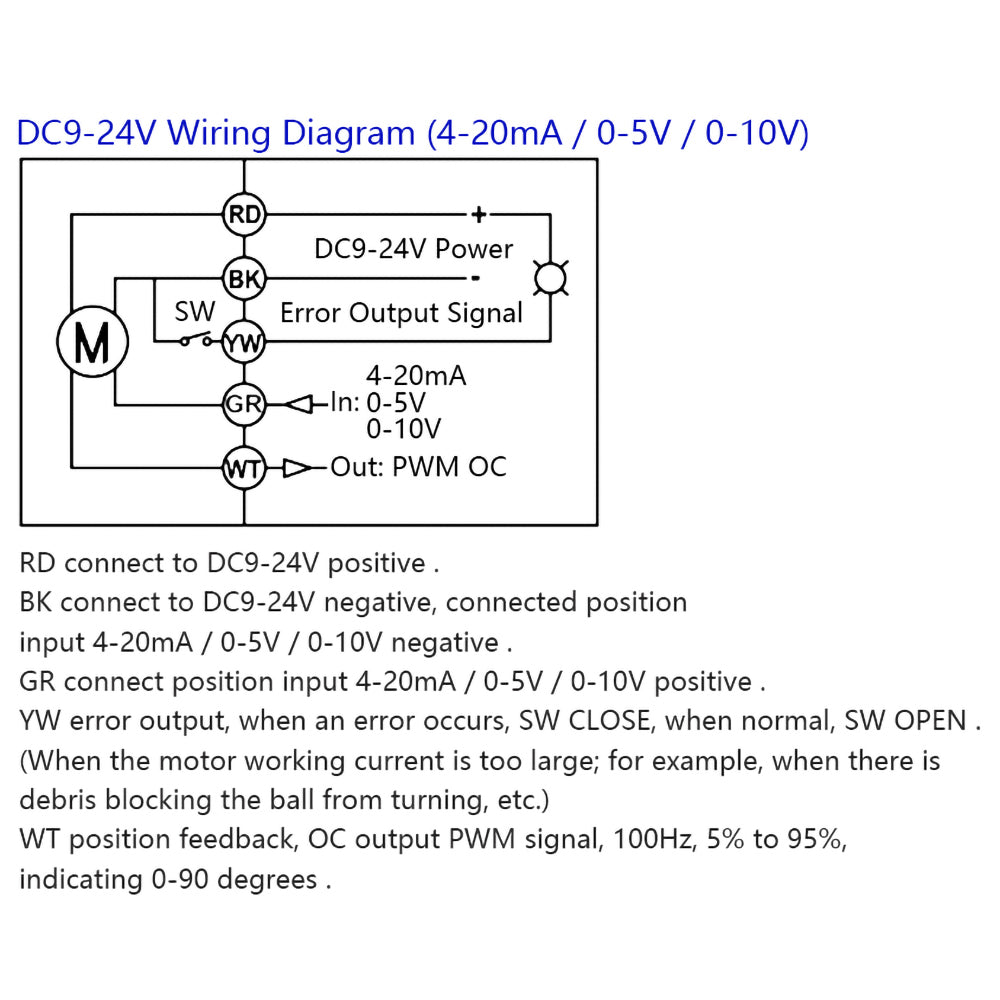

◎Wiring Diagram: DC9-24V (5 Wires Control & Position Feedback)
◎Working Voltage: DC9-24V
◎Control Signal: 0-5V (Optional 4-20mA, 0-10V, 0-5V)
◎Working Current: ≤500mA
◎Working Medium: Fluid, Air
◎Working Pressure: Max 1.0MPa
◎Switching Time: ≤7s
◎Locked-rotor Delay Time: 2s - 4s
◎Position: Any Position (0% ~ 100% is ok)
◎Life Time: 70000 times (Testing pressure is 0.4MPa, medium is water)
◎Actuator Rotation Angle: 90°
◎Torque Force: 4N.m
◎Cable Length: 0.5m (Optional 1.5m)
◎Environment Temperature: -15℃ ~ 50℃
◎Liquide Temperature: 2℃ ~ 90℃
◎Switch Indicator: YES
◎Manual Override: NO
◎Protection Class: IP67

Brass 1/4", 3/8", 1/2", 3/4", 1", 1-1/4"
Working
Voltage
DC9-24V
Control
Signal
 0-5V, 0-10V, 4-20mA
Working
Current
≤500mA
Switching
Time
≤7s
Actuator
Rotation
90°
Torque
Force
4N.m
Manual
Override
NO

Application
◎HVAC;
◎Water Treatment;
◎Chemical Process;
◎Air Compressor Drainage;
◎Automatic Control System;
◎Solar Hot Water Engineering;
◎Watering Flowers, Regular Humidification;
◎Air Conditioning Automatically Humidifies;
◎Automatic Control Of Small Industrial Equipment;
◎Environmental Protection, Efficient Water-saving;
◎Replace Solenoid Valve (Especially when solenoid valve cannot work reliably);

Features
◎High protection level, can work in most working conditions.
◎Reliable performance, large output torque, up to 50000-100000 times, easy to meet various requirements.
◎Mechanical and electrical limit integrated design, accurate positioning, high consistency, eliminate valve swing.
◎POM gears cooperate with metal gears, POM gears use high-speed to reduce noise, while metal gears use low-speed to ensure the reliability of the gears.
◎Full bore design, no leakage, large flow, the valve is bi-directional ball valve, regardless of inlet and outlet; Most suitable for heavy dirt and a state of no action for a long time.
