Product Overview:

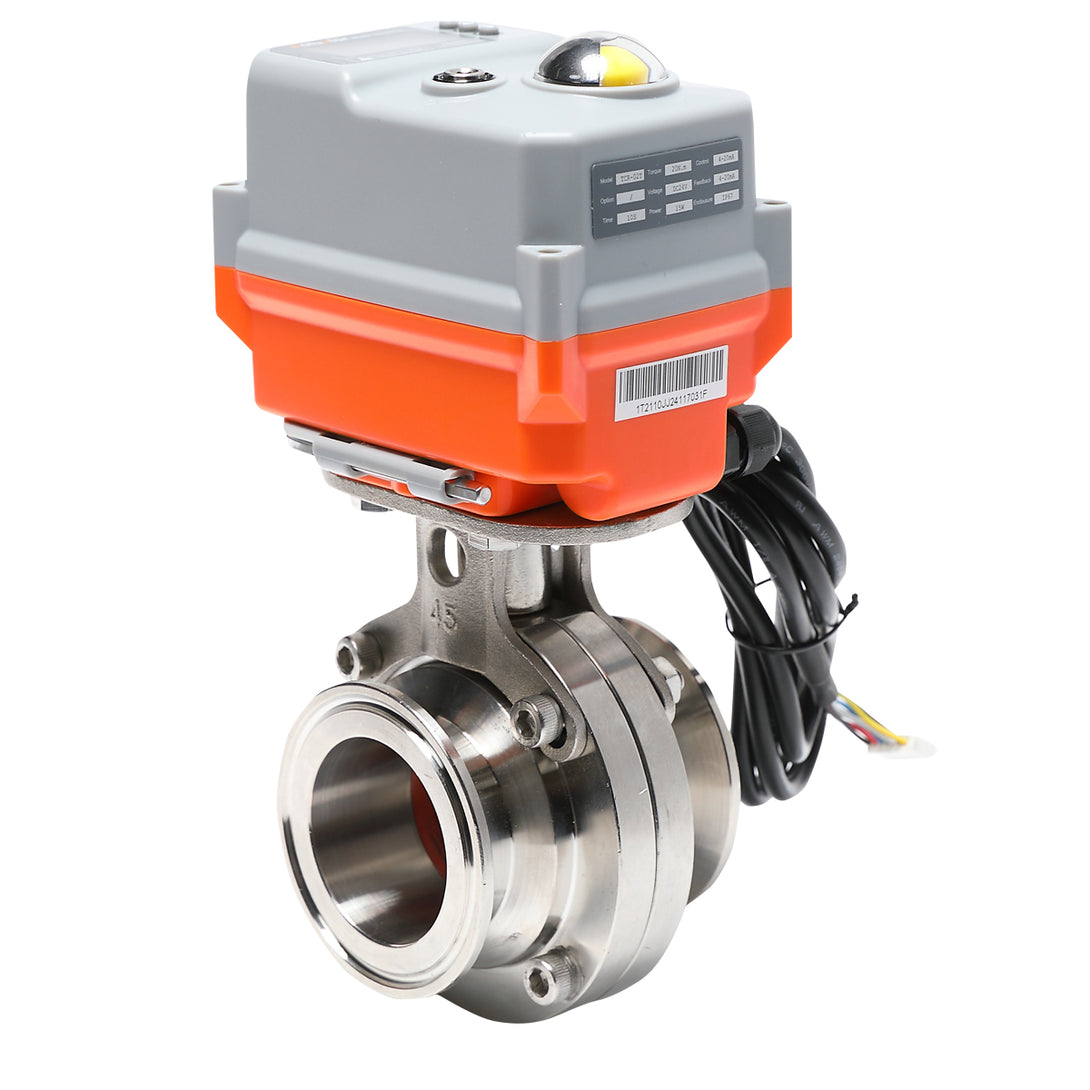

◎ 24VDC RS485 Modbus Control 20N.m ISO5211 F03/04/05 Standard Connection Actuator;

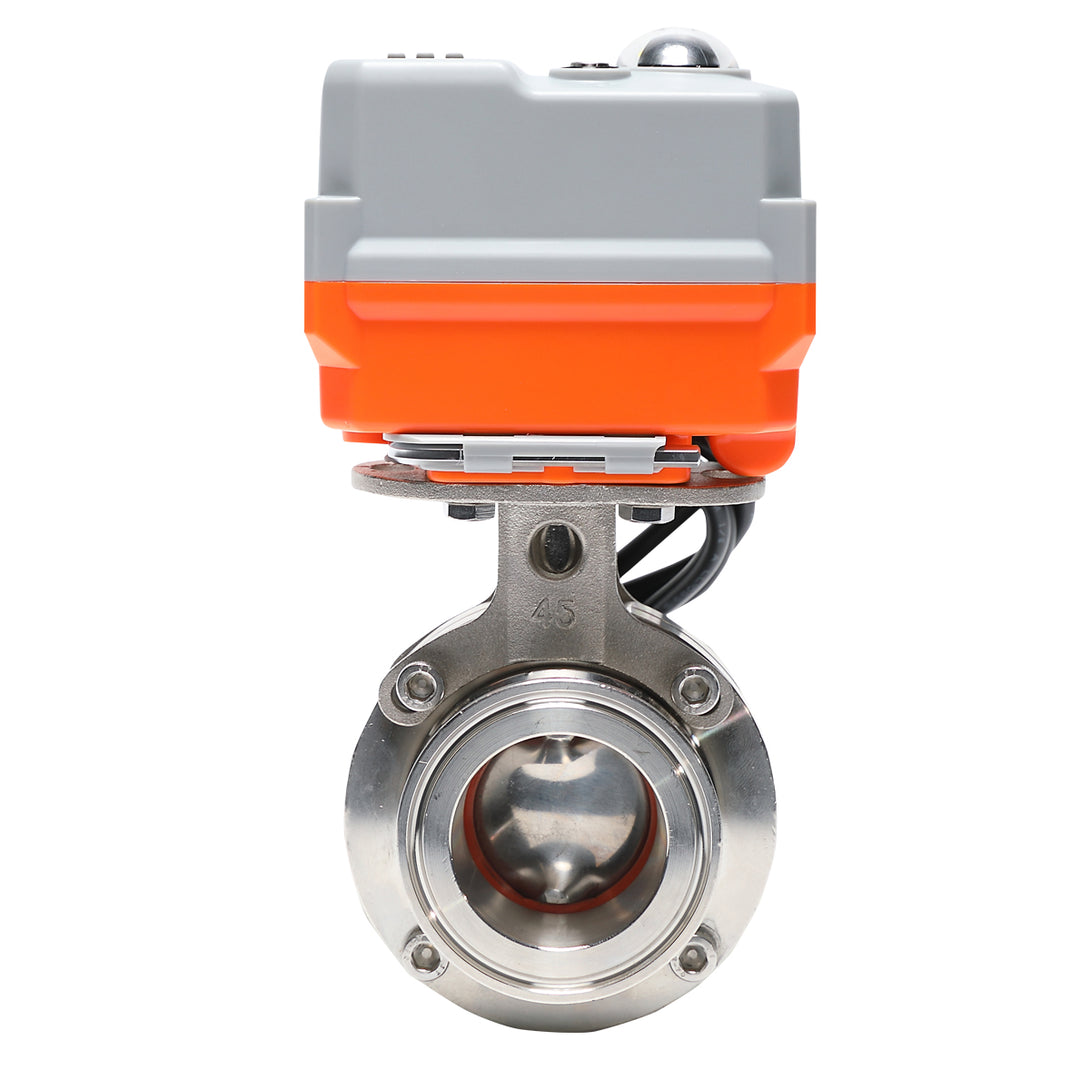

◎ Installed With Φ19-Φ76 Stainless Steel 304 Electric Sanitary Butterfly Valve
◎ Menu Can Report Real-time Failure, including Stuck Or Other Reasons Which Lead Actuator Fail To Realize Valve On/off Integrally, and Output Failure Warning Signal;
◎ Built-in Motor Control Module, High-Performance Brushless Motor Frequency Speed Control Can Realize Accurate Positioning, Built-in Overload Protection of Internal Motor;

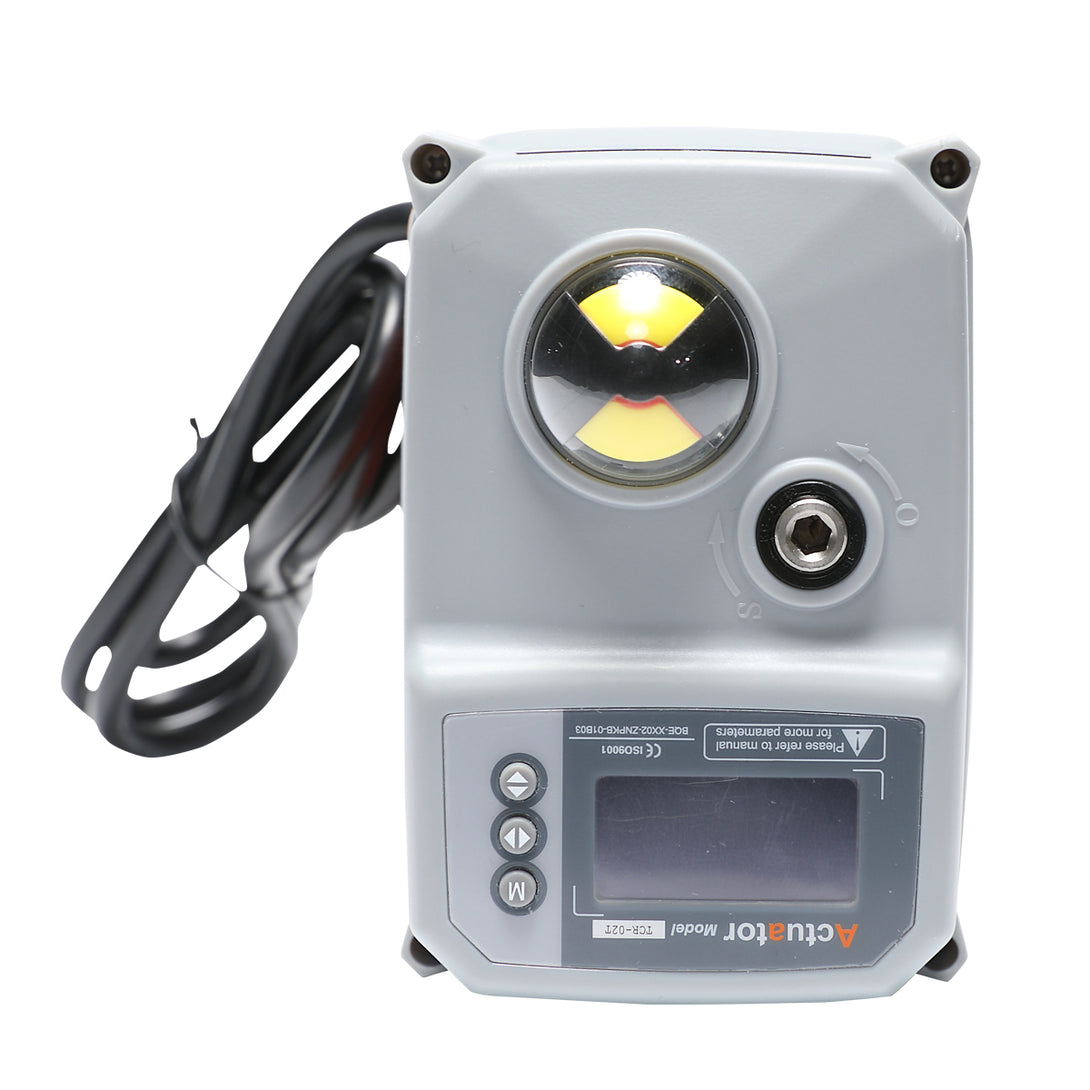

◎ 1.3" OLED Screen, No Visual Dead Angle, Highly Bright, Energy Saving And Eco-Friendly, Real Time To Show Valve Opening Angle And External Control Command Smart Ball Valve Actuator. Enter Sleeping State Automatically After About 5 Minutes, While It Could Prompt Location State And Its Control Command At Sleeping Time;
◎ Valve Dimension:Φ19-Φ76
◎ Working Pressure: 145 PSI(1.0Mpa);
◎ Actuator Rated Torque: 20N.m(24N.M. @ Max);
◎ Recomand Install Below 15N.m Valvd Body;
◎ Rated Voltage: 24VDC/AC;
◎ Control Feedback Method: RS485 Modbus;
◎ Adopted High-Performance Brushless Motor, Overload Protection of Internal Motor;
◎ It can be used 20,000 times.*1;
◎ Connection Standard: ISO5211 F03/F04/F05;
Electrical Data:
◎ Rated Voltage: AC/DC24V (AC20-26V / DC22-32V);
◎ Power Consumption: 15W@Max 9.6W@Running, 1.6w@Holding;
◎ Peak Current: 0.75A@5ms@DC24V;

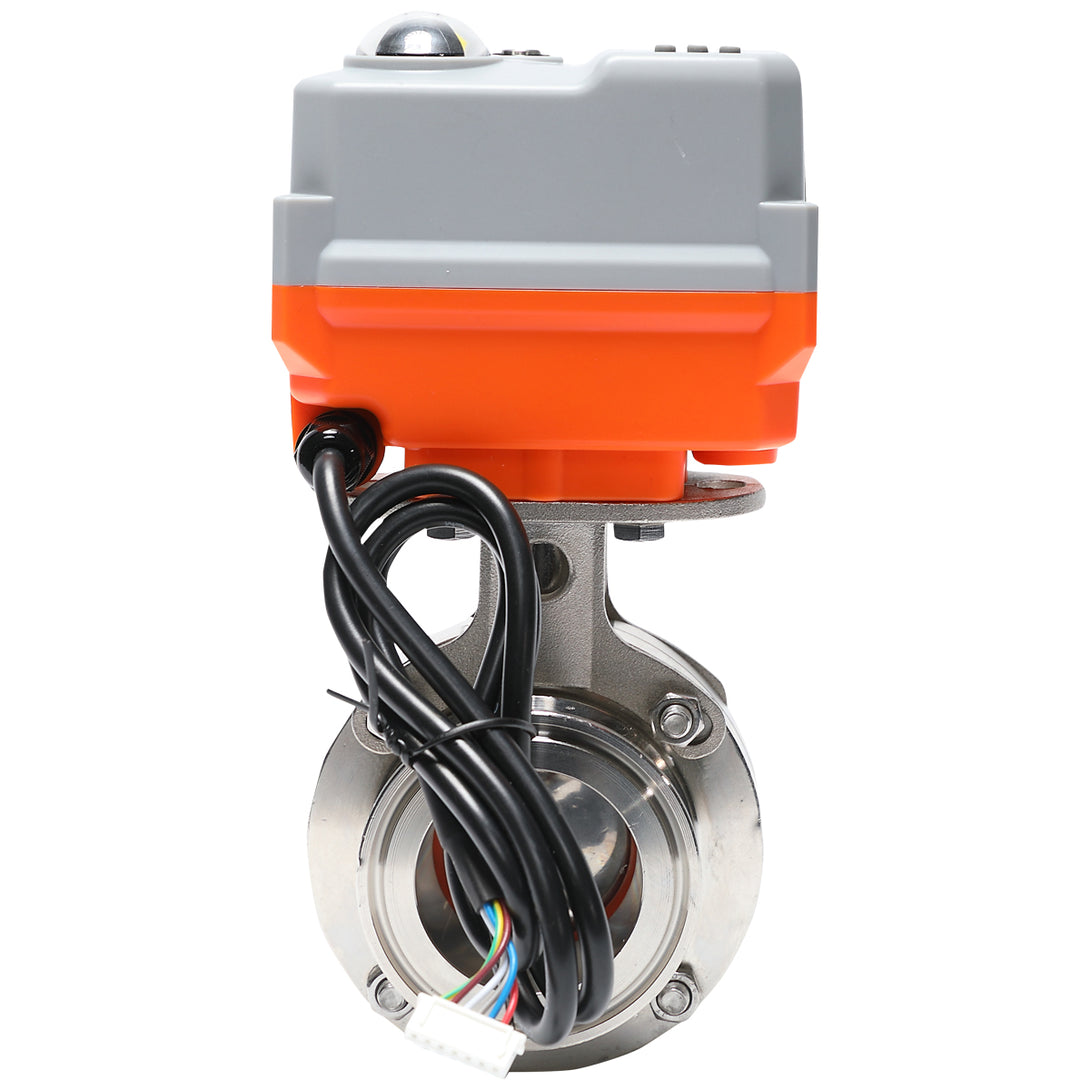

◎ Connecting Cable: 7*0.3mm² Cable, Voltage Withstand AC300V; Length 800mm;
◎ Fuse: 2A;
◎ Rated Torque: 20N.m;
◎ Angle Of Rotation: 90°±2°;
◎ Max Angle Of Rotation: 330°±5°;
◎ Manual Operation: ※ Matching Hexagon Wrench, Wsing At No Power;
◎ Running Time: About 10S(Per 90°);
◎ Continuous Running: Continuous Running;
◎ Sound Power Level: Max 50dB(A);
◎ Position Indicator: Mechanical and Screen;
Working Conditions:
◎ Electricity Safety Level: III Type (Ground Protection );
◎ Inflaming Retarding Level: 1.6mmHB/ UL94 Test Method;
◎ Enclosure: IP67 As Per En60529/GB4208-2008(All Directions); F Type Can Add Dehumidifying Heater ;
◎ Insulation Resistance: 100MΩ/500VDC ;
◎ Withstand Voltage: 500VAC, 1Min;
◎ Medium Temperature: ≤80° Can Install To Actuator Directly; >80° Need To Install Bracket or Heat Radiation Stand;
◎ Indoor or Outdoor; If Exposed To The Rain or Sunshine, Need To Install Protective Device For The Actuator;
◎ Not Explosion Proof Products, Do Not Use Them in Flammable and Explosive Environment;
◎ Ambient Temperature: -15℃ ~ 45℃;
◎ Non-operation Temperature: ≤-40℃ or ≥80℃;
More Infor.:
◎Installation Notes: 360°Any Angle, Need Manual Operation Or Allow For Wiring Space
◎Maintenance: Free Maintenance
◎Certification: CE
◎Connection Standard: ISO5211 F03、F04、F05;
◎Output Axis Specification: Female Octagonal or Male Square;
◎Hole Deepness: ≤15mm(Female Octagonal)/6.5mm(Male Square);
◎Weight: 0.65Kg For Actuator Only.
