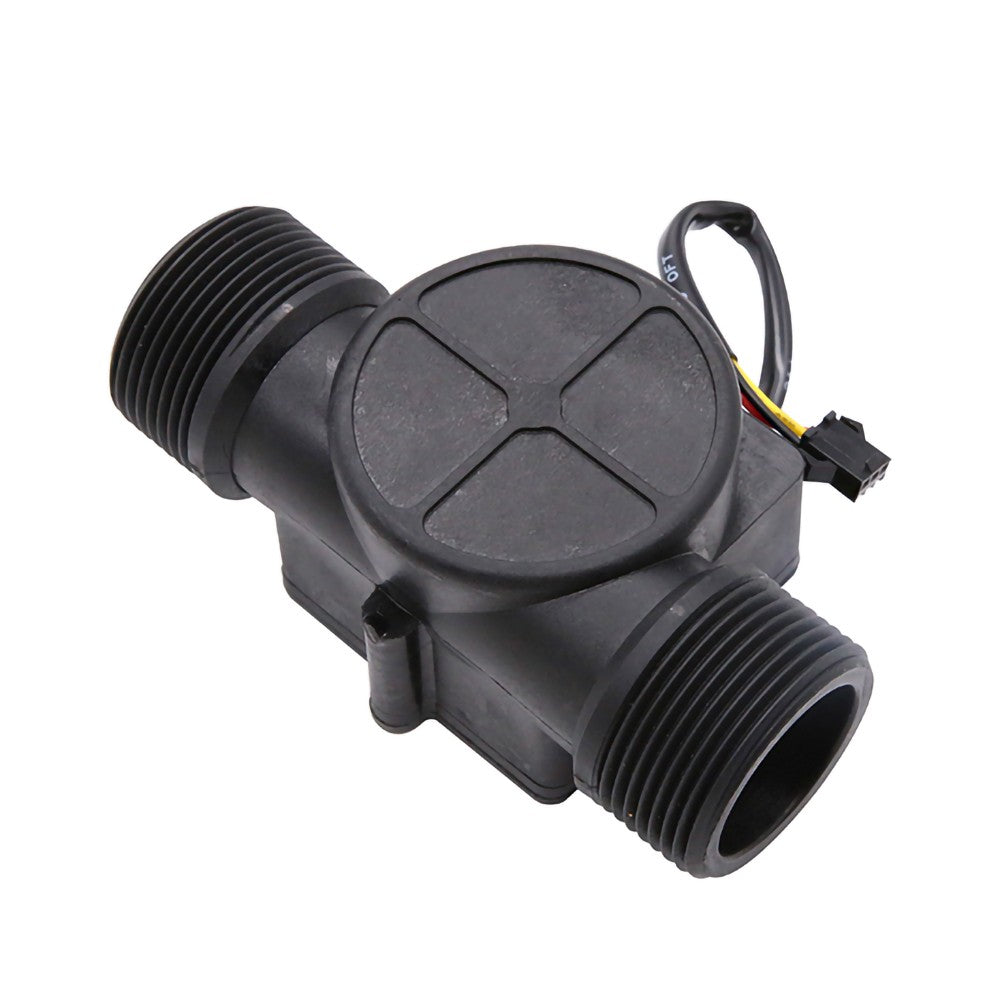

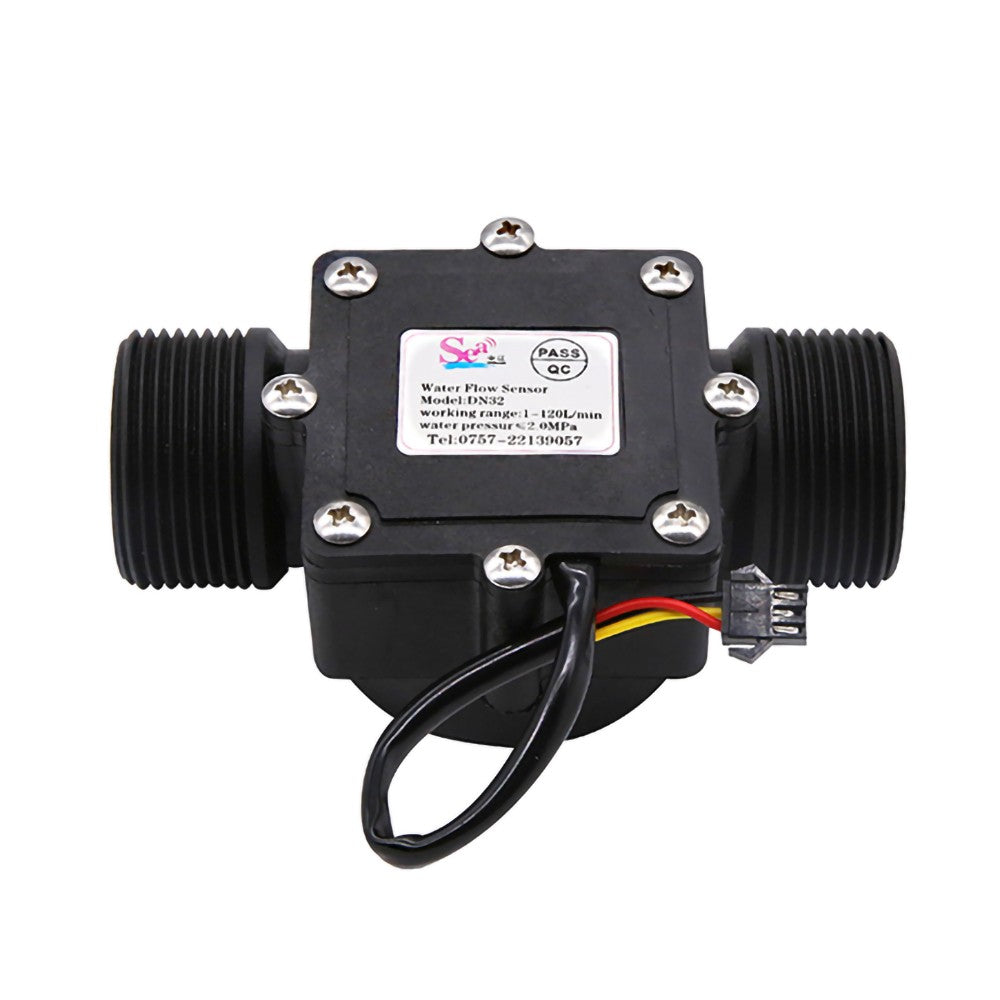

5VDC Water Flow Sensor 1.25" Turbine Flowmeter Industrial-grade Large Flowmeter Pulse Signal

$24.99

size: 1.25"

1.25"
Add to Wishlist

visamasteramazon paymentsamerican expressapple paypaypal
Description

Specification
◎ Model: YF-DN32
◎ Output Signal: NPN Pulse Signal(If you need PLC, please contact customer service first)
◎ Size: 1.25"
◎ Diameter: 41.5mm
◎ Thread Length: 26mm
◎ Voltage: 5VDC
◎ Flow Rate: 1-120L/min
◎ Pulse: f=(0.45*Q) Q=L/min
◎ Pressure: ≤1.75MPa
◎ Operating Temperature: ≤80℃
◎ Operating Humidity: 35% ~ 90% RH
◎ Ambient Temperature: -20℃ ~ 80℃
◎ Environmental Humidity: 25% ~ 95% RH
◎ Medium: Non-corrosive Low-viscosity Liquid

Note
◎ Wiring: Red (IN) positive, Black (GND) negative pole, Yellow (OUT) signal output.
◎ Mainly used in milk, chemicals, paint, detergent and other liquids with high concentration and non-corrosive (no impurities).

Feature
◎ High precision;
◎ Not easy to leak;
◎ Comply with ROHS testing;
