Specification

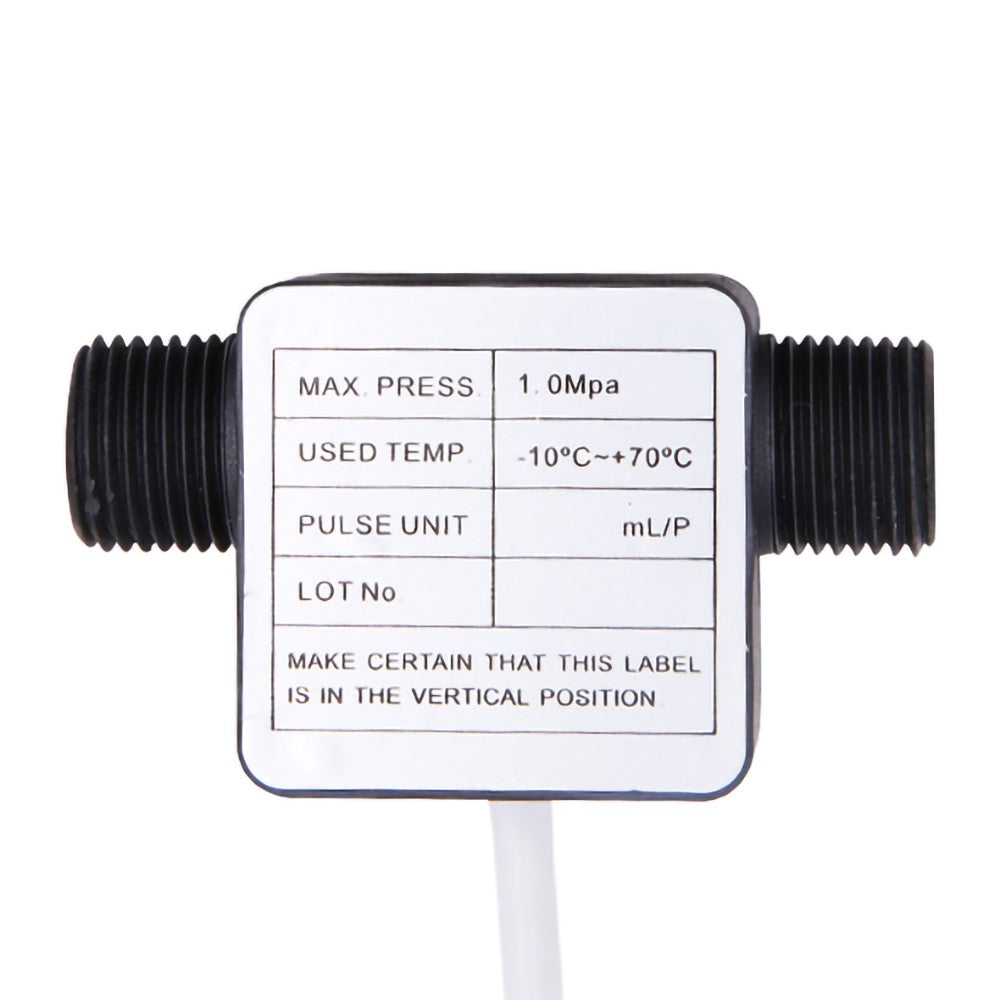

◎ Model: OF05ZAT
◎ Output Signal: NPN Pulse Signal(If you need PLC, please contact customer service first)
◎ Size: G1/2"
◎ Frequency: F=2.5*Q(L/min)
◎ ID/OD: 10mm / 20.4mm
◎ Thread Length: 29mm
◎ Material: PPS
◎ Voltage: 5-18VDC
◎ Current: ≤10MA(5VDC)
◎ Flow Rate: 30-1200L/H
◎ Operating Temperature: ≤80℃
◎ Operating Humidity: 35% ~ 90% RH
◎ Pressure: <1.2MPA
◎ Ambient Temperature: -25℃ ~ 80℃
◎ Environmental Humidity: 25% ~ 95% RH
◎ Medium: Non-corrosive Low-viscosity Liquid
Note
◎ Wiring: Red (IN) positive, Black (GND) negative pole, Yellow (OUT) signal output.
◎ Mainly used in milk, chemicals, paint, detergent and other liquids with high concentration and non-corrosive (no impurities).
Feature
◎ High precision;
◎ Not easy to leak;
◎ Comply with ROHS testing;
◎ O type waterproof ring package;
◎ Waterproof silica gel at the outlet;
