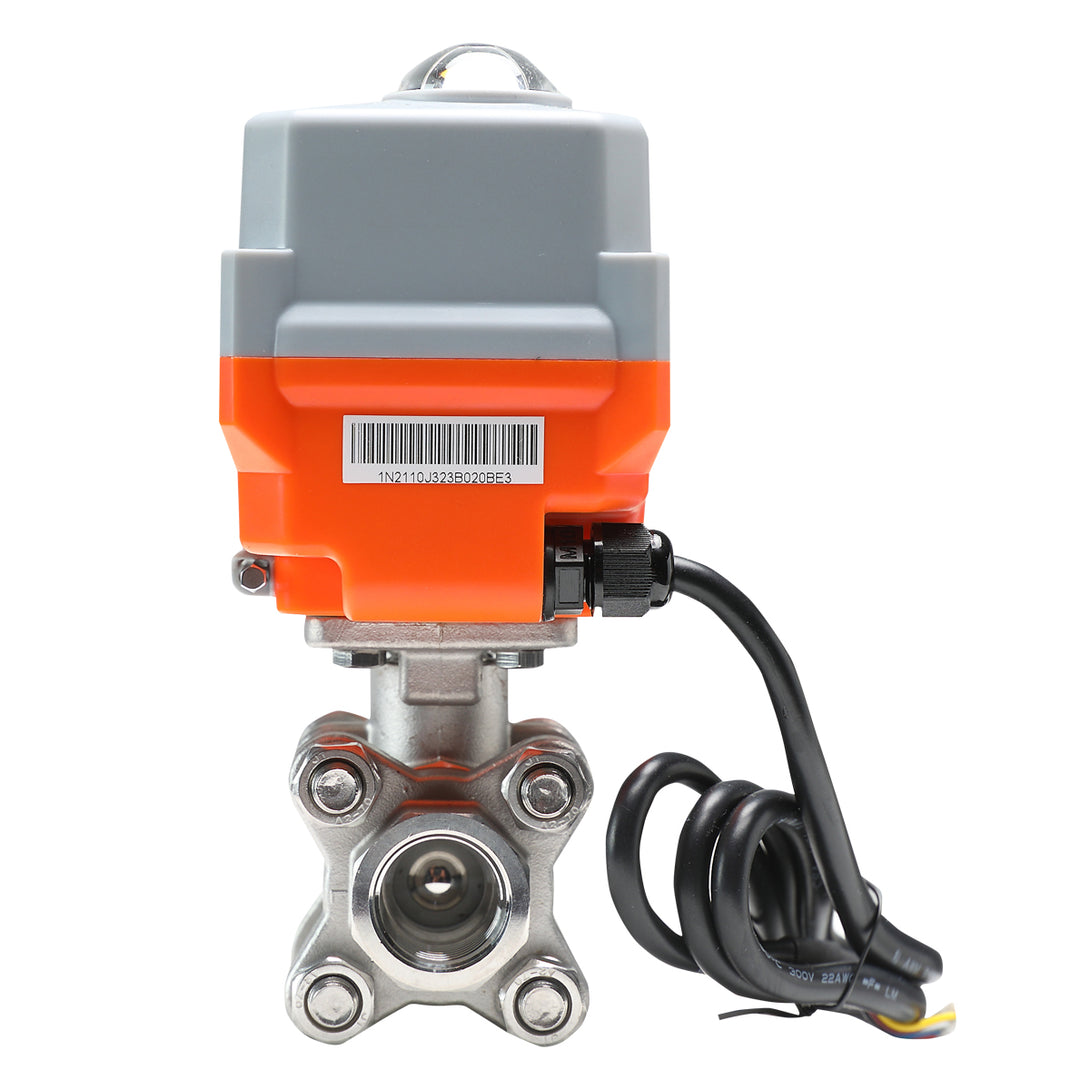

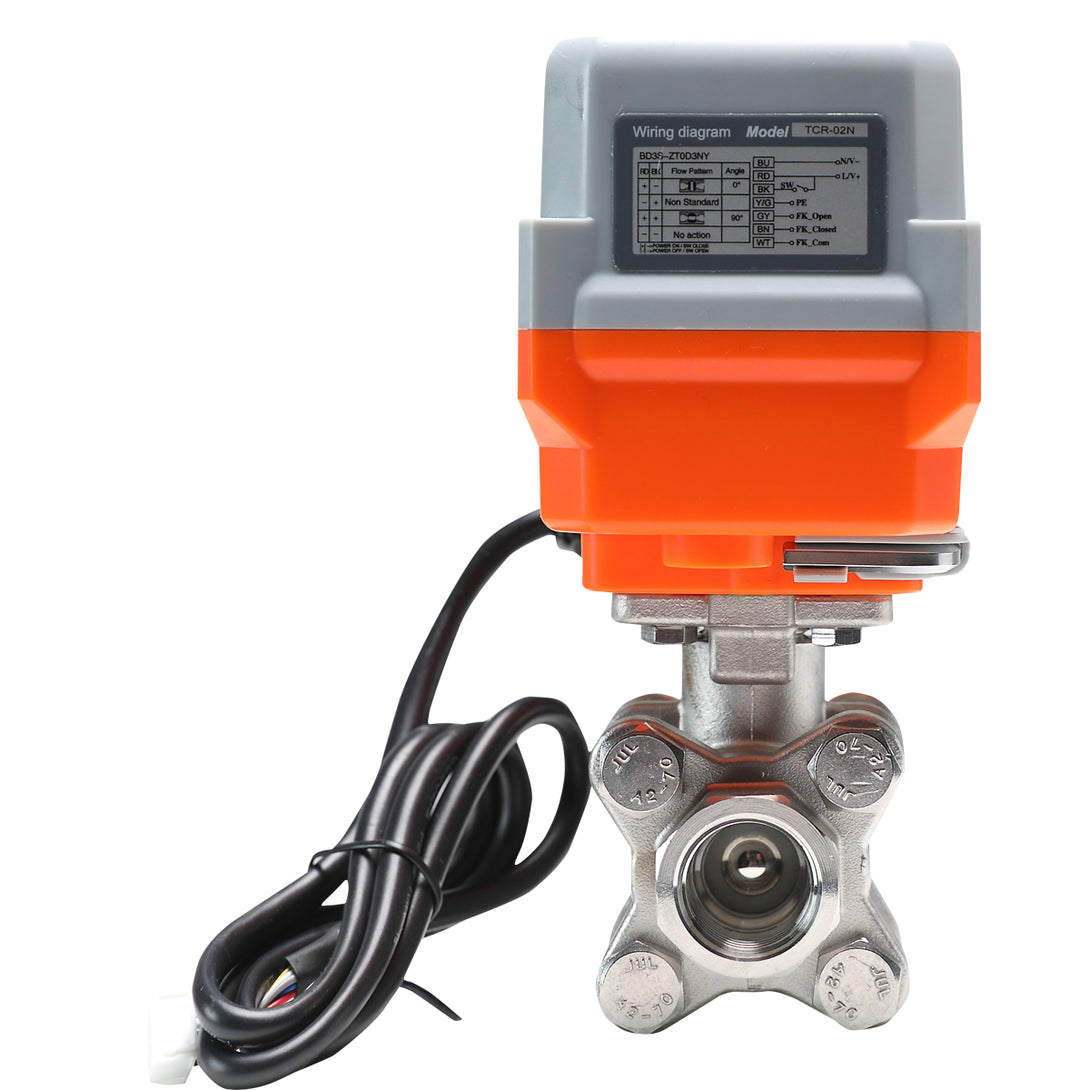

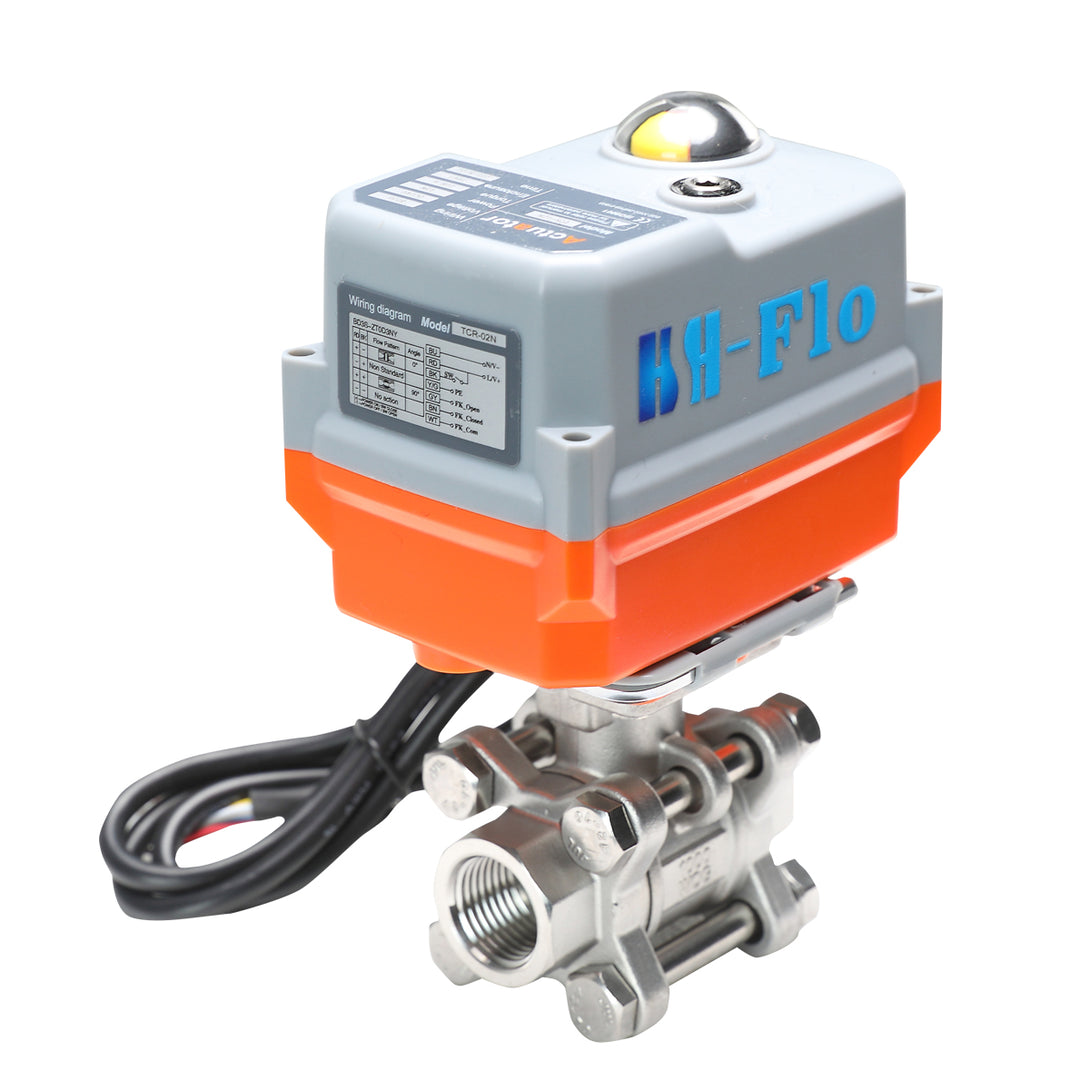

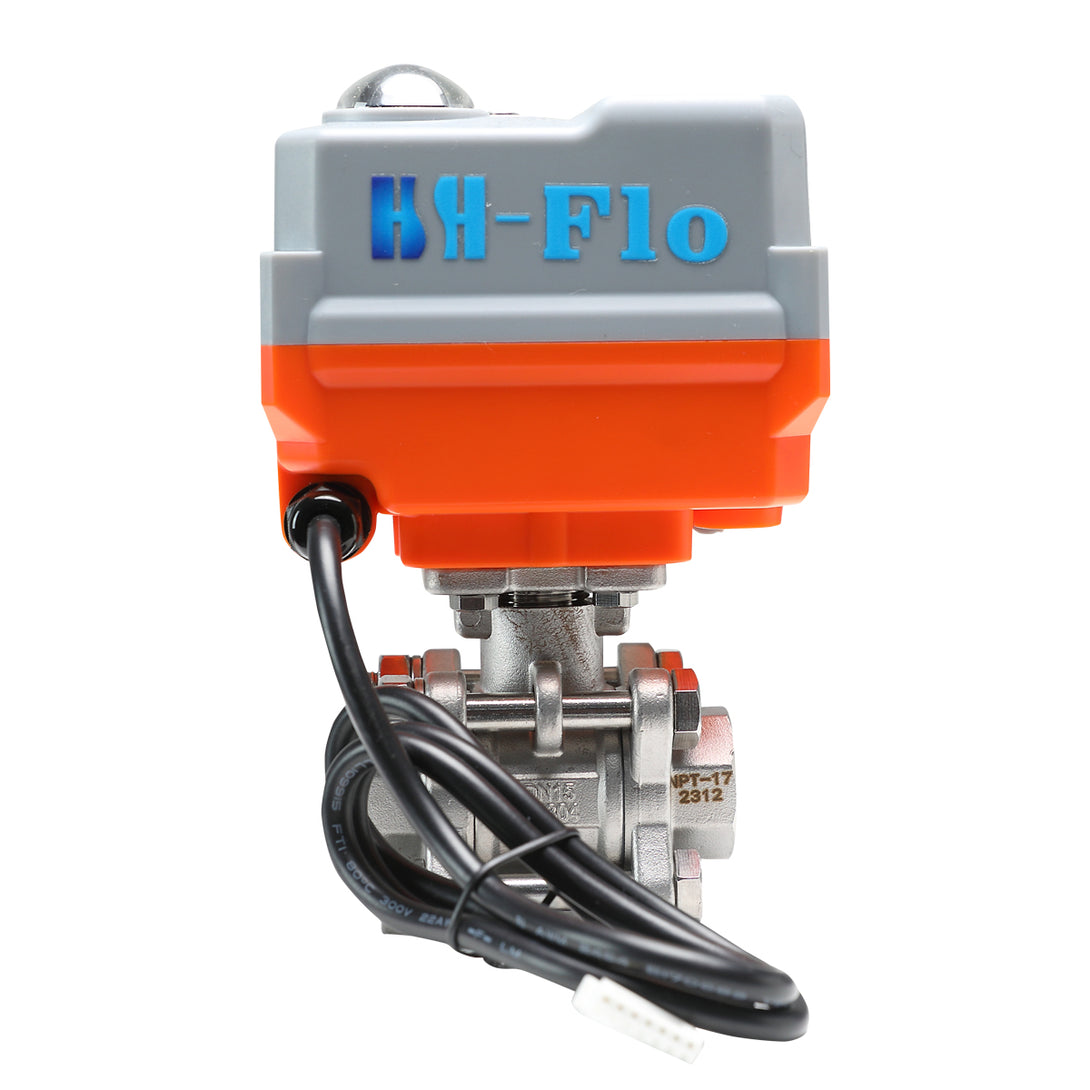

10 Sec. Quick Respon Open/Closed 24VDC 2 Way CF8 Motorized Electrical Ball Valve

$200.99

size: 1/2 inch

1/2 inch
3/4 inch
1 inch
1-1/4 inch

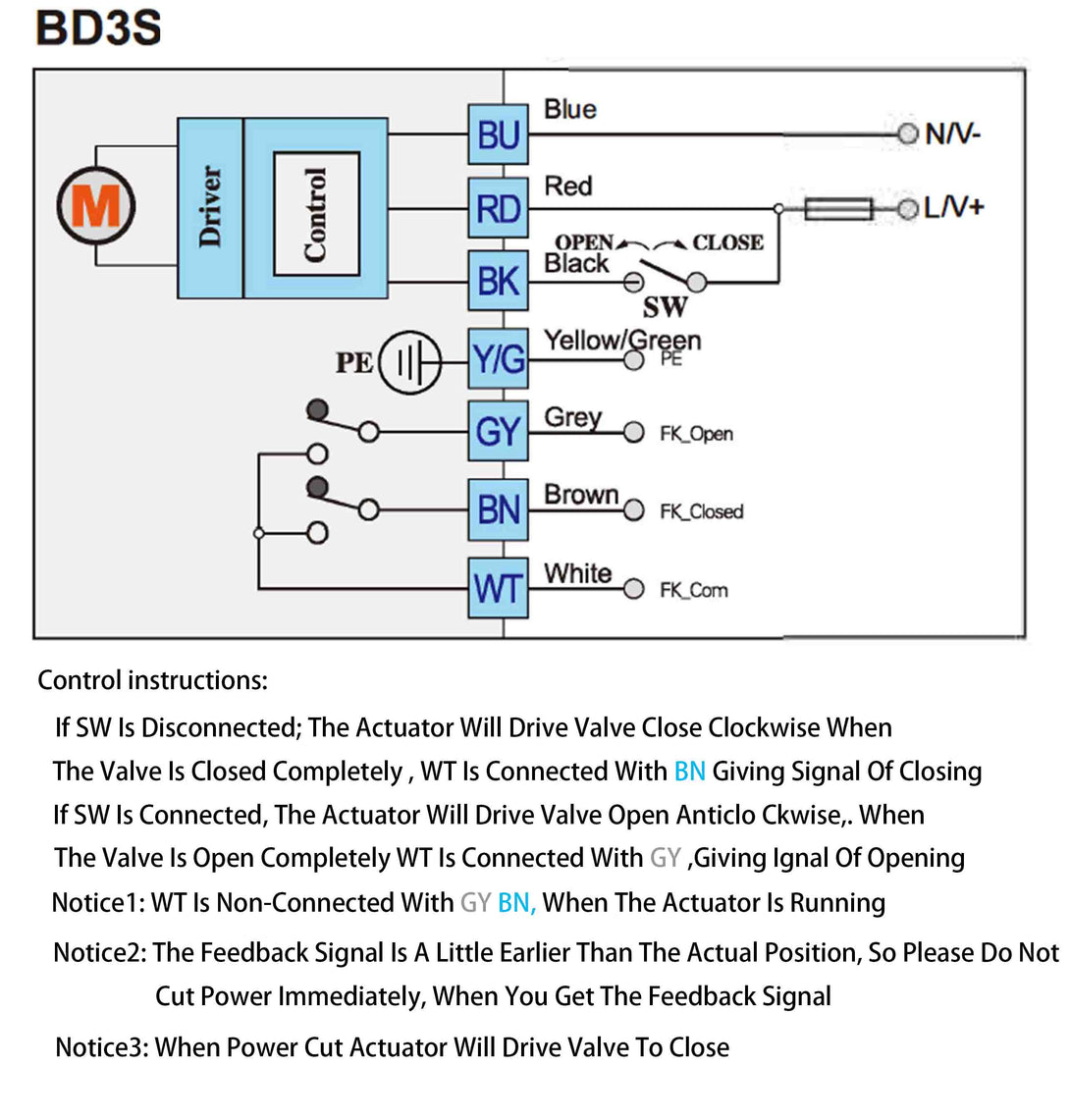

Wiring Diagram: BD3S

BD3S

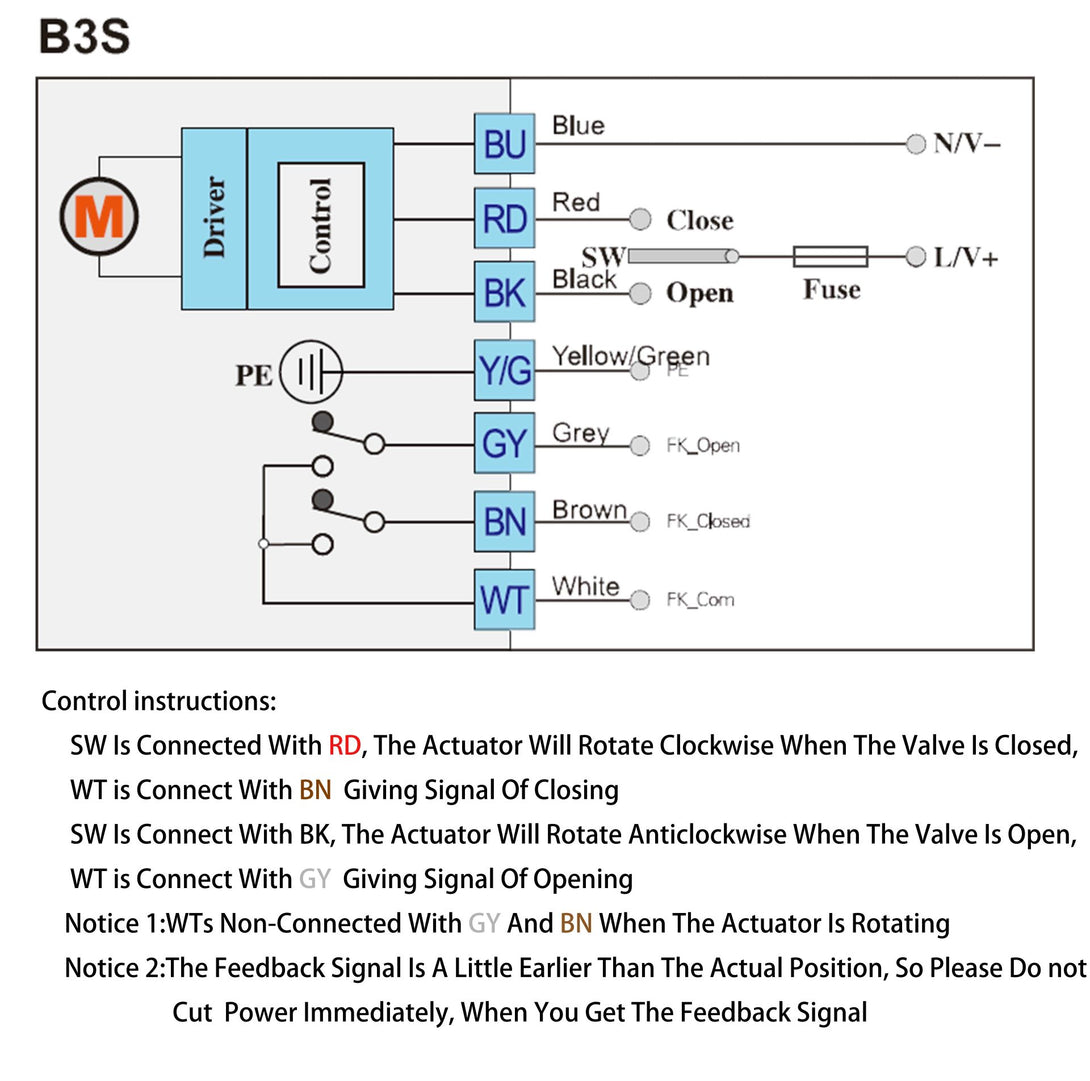

B3S
Add to Wishlist

visamasteramazon paymentsamerican expressapple paypaypal
Description
Product Overview:
◎ With a 10-Second Quick Response, This Control Valve Offers Unmatched Precision And Control For Your Industrial Needs. Quick Respon, Fast Open And Closed;
◎ Available With BSP Or NPT Threads And Can Be Connected According To Standard ISO5211 F03/F04/F05, This Product Will Be Suitable For Effective Connections In Most Situations;
◎Alternative To Solenoid Valves - This Reduces The Potential For Overheating, Making It An Excellent Alternative To Solenoid Valves For A Wide Range Of Projects Suitable For Secondary Valve Models
◎ Reliable & Safe - This Product Has Been Rigorously Pressure Tested, The Body Has Been Carefully Selected From Copper As The Material, Strong And Wear-Resistant, Smooth And Burr-Free, And Has A Service Life Of Up To 2000 Cycles, This Product Will Be Your Best Choice;
◎ Built-In Motor Control Module, High-Performance Brushless Motor Frequency Speed Control Can Realize Accurate Positioning, Built-In Overload Protection Of Internal Motor;

Product Detail:
◎ Valve Dimension: 1/2" 3/4" 1“ 1-1/4"    BSPP or NPT Thread Available;
◎ Switching Time: 10 Sec.
◎ Actuator Rated Torque: 20N.m;
◎ Recomand Install Below 15N.m Valvd Body;
◎ Rated Voltage: 24VAC/DC;
◎Wiring Diagram: BD3S/B3S
◎ Position Accuracy: ±1%(Set By Software);
◎ Adopted High-Performance Brushless Motor, Overload Protection of Internal Motor;
◎ It can be used 20,000 times.*1;
◎ Connection Standard: ISO5211 F03/F04/F05;
 ◎ Maximum Working Voltage: 2.0Mpa(290PSI)

Electrical Data:
◎ Rated Voltage: AC/DC24V (AC18-28V; DC18-32V);
◎ Power Consumption: 9.6W @Running, 0.25 w@Holding;
◎ Peak Current:500mA@5ms;
◎ Connecting Cable: 7*0.2mm² Cable, Voltage Withstand AC300V;
◎ Fuse: 2A;

Functional Data:
◎ Rated Torque: 20N.m;
◎ Angle Of Rotation: 90°±2°;
◎ Max Angle Of Rotation: 330°±5°;
◎ Manual Operation: ※ Matching Hexagon Wrench, Wsing At No Power;
◎ Running Time: About 10S(Per 90°);
◎ Continuous Running: Continuous Running;
◎ Sound Power Level: Max 50dB(A);

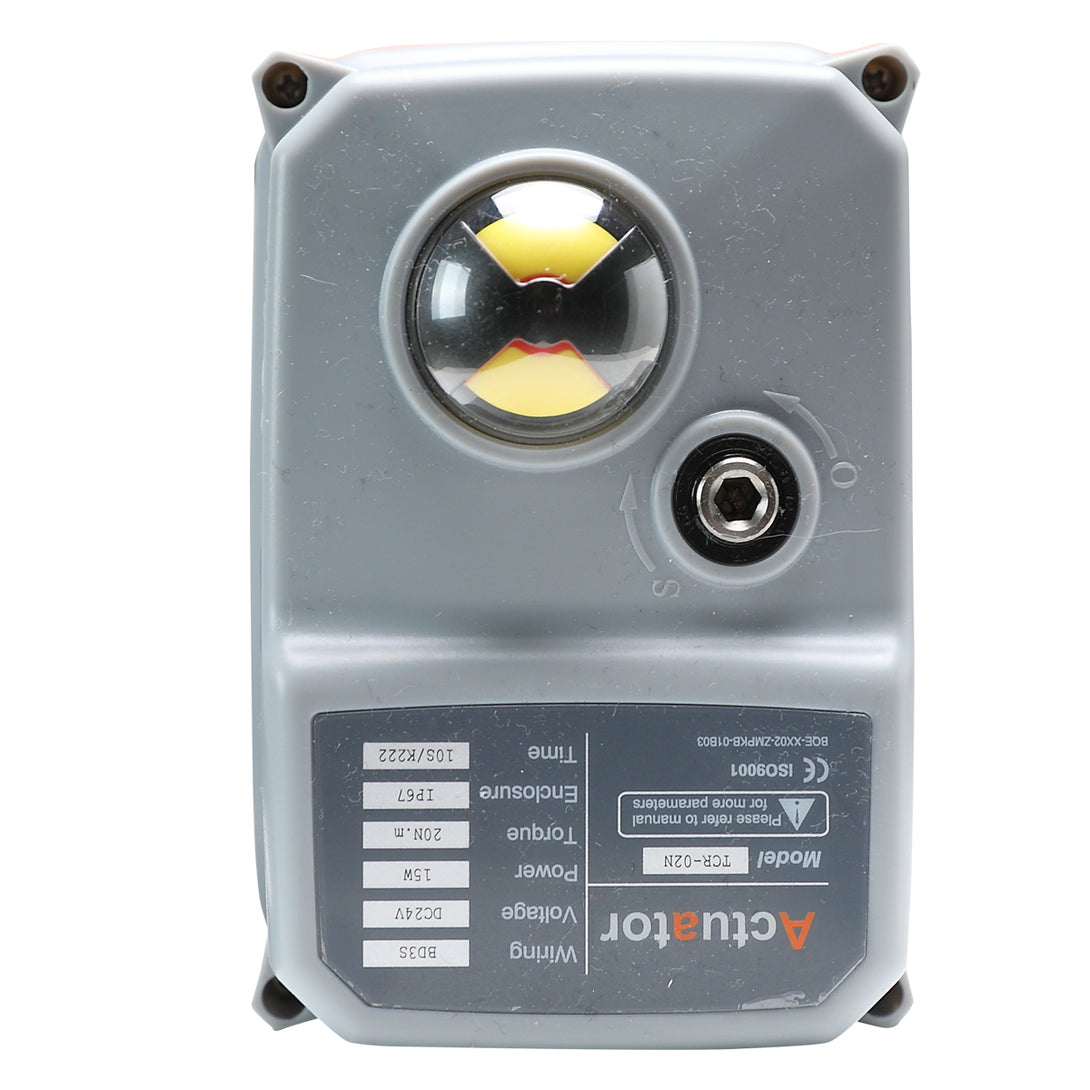

◎ Position Indicator: Mechanical and Screen;

Working Conditions:
◎ Electricity Safety Level: III Type (Safety Low Voltage);
◎ Inflaming Retarding Level: V0 UL94 Test Method;
◎ Enclosure: IP67 As Per En60529/GB4208-2008(All Directions); F Type Can Add Dehumidifying Heater ;
◎ Insulation Resistance: 100MΩ/500VDC ;
◎ Withstand Voltage: 500VAC, 1Min;
◎ Medium Temperature: ≤80° Can Install To Actuator Directly; >80° Need To Install Bracket or Heat Radiation Stand;
◎ Indoor or Outdoor; If Exposed To The Rain or Sunshine, Need To Install Protective Device For The Actuator;
◎ Not Explosion Proof Products, Do Not Use Them in Flammable and Explosive Environment;
◎ Ambient Temperature: -30℃ ~ 60℃;
