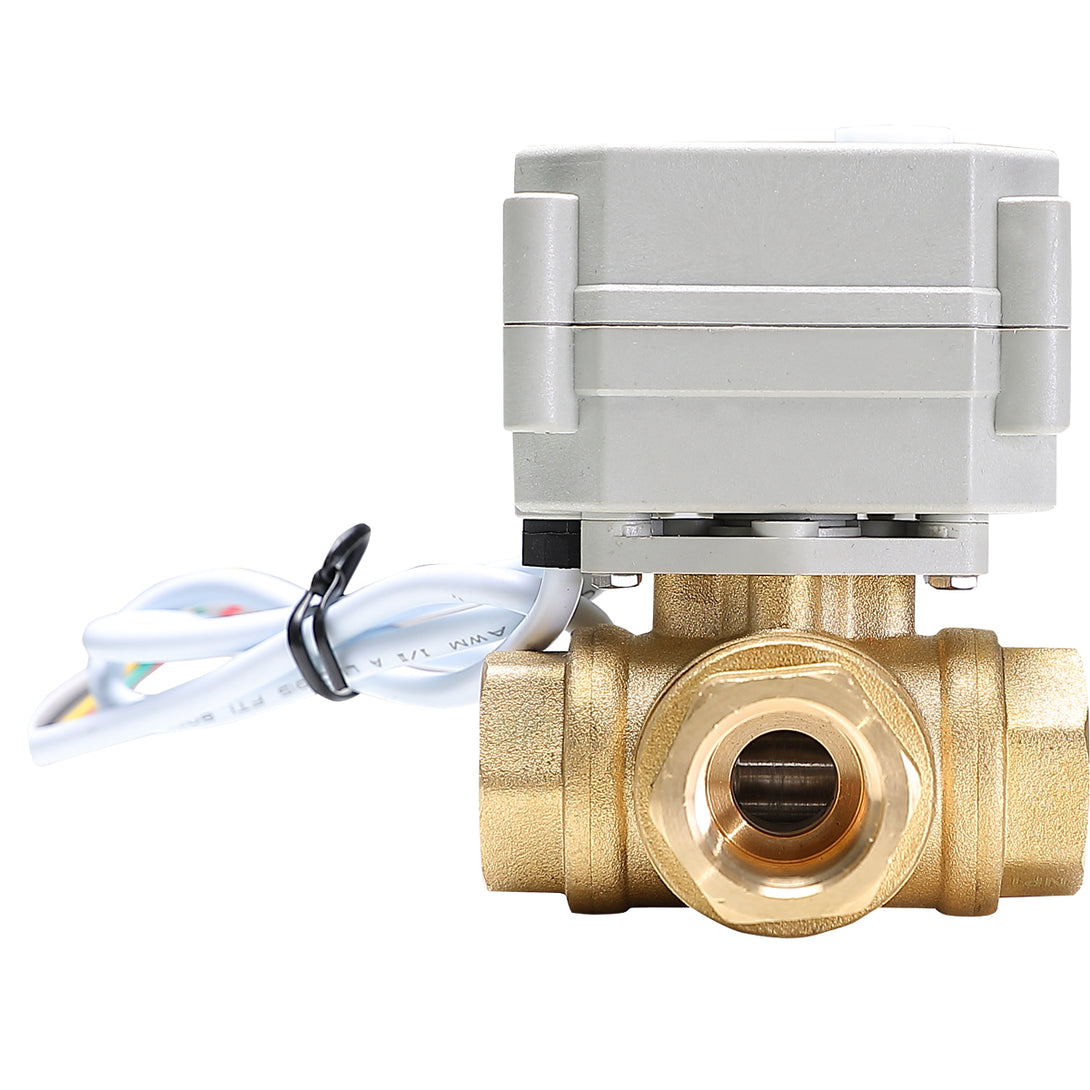

HSH-Flo 3 Way 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 12V/24VDC L Type Auto Return Brass Electrical On/Off Motorized Ball Valve

Technical Parameter:
◎ Working Voltage: 12V/24VDC;
◎ Valve Dimension:1/4" 3/8" 1/2" 3/4" 1" 1-1/4" NPT Female Thread Connection

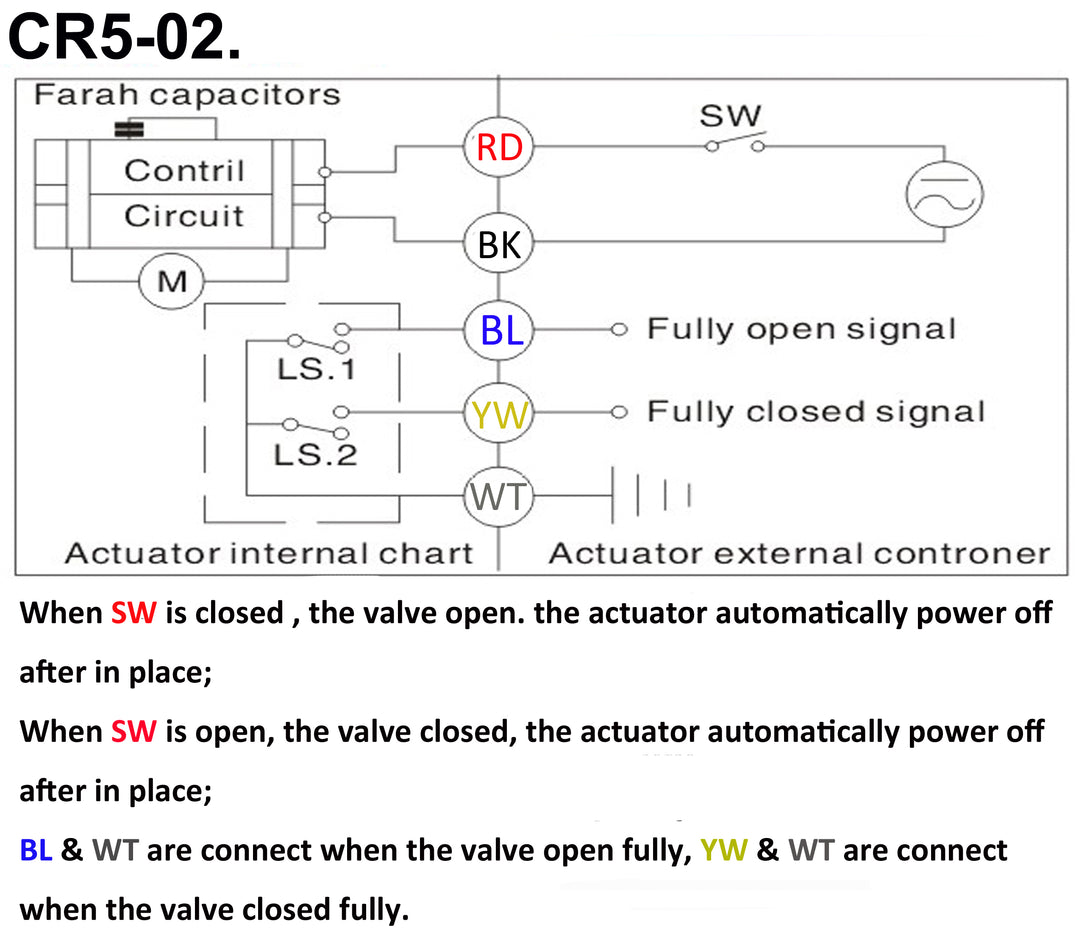

◎ Wiring Diagram:CR5-02(2 Wires Control, Installed With Position Feedback Wires);
◎ Valve Body Material: Brass
◎ Actuator Material: Engineering Plastics;
◎ Open/Closed Time: Less Than 7Sec.;
◎ Suitable Media: Air, Water, Oil;
◎ Power: Max 2 Watts;
◎ Manual Override: Yes;
◎ Indicator: Yes;
◎ Working Current: Max 500Ma When Action, Cut Off Current When Arrived At Place;
◎ Max. Torque Force For Aucator: 2 N.M;
◎ Cables Length: 0.5 Meters;
◎ Max Working Pressure:145PSI(1.0MPA);
◎ Liquid Temperature: 32°~212°F (0°~100°C);
◎ Environment Temperature:5~122F(-15°~50°C);

Application:
◎ HVAC;
◎ Water Treatment;
◎ Chemical Process;
◎ Small Industrial Equipment For Automatic Control;
◎ Replacing Solenoid Valve, Particularly When Solenoid Cannot Work Reliably;
◎ Automatic Control Systems;
◎ Efficient Water-Saving, Water Equipment;
◎ Solar Hot Water Project;
◎ Regular Watering The Flowers, Timing Humidifying, Timing of Drainage of Air     Compressor.

Features:
Smart Shape, Perform Reliably, Large Output Torque, As Long As 50000-100000 Times , Convenience For All Kinds Of Requirements;
Float Ball design, No Leak, Large Flow, The Valve is Bi-directional Ball Valve , Regardless of Inlet And Outlet , Most Suitable for Heavy Dirt and Long Time No Action;
The Conditions That Solenoid Valve Can Not Be Worked;
High Protection Class, Can Be Worked In Most Conditions;
POM Cooperate With Metal Gear, The POM Gear is Used in High-Speed Level to Reduce Noise, At The Same Time Metal Gear is Applied At The Low-Grade To Ensure The Reliability of The Gear;
Electrical and Mechanical Limit Integrated Design, Accurate Localization ,High consistency , Put an End to Swing of Valve.

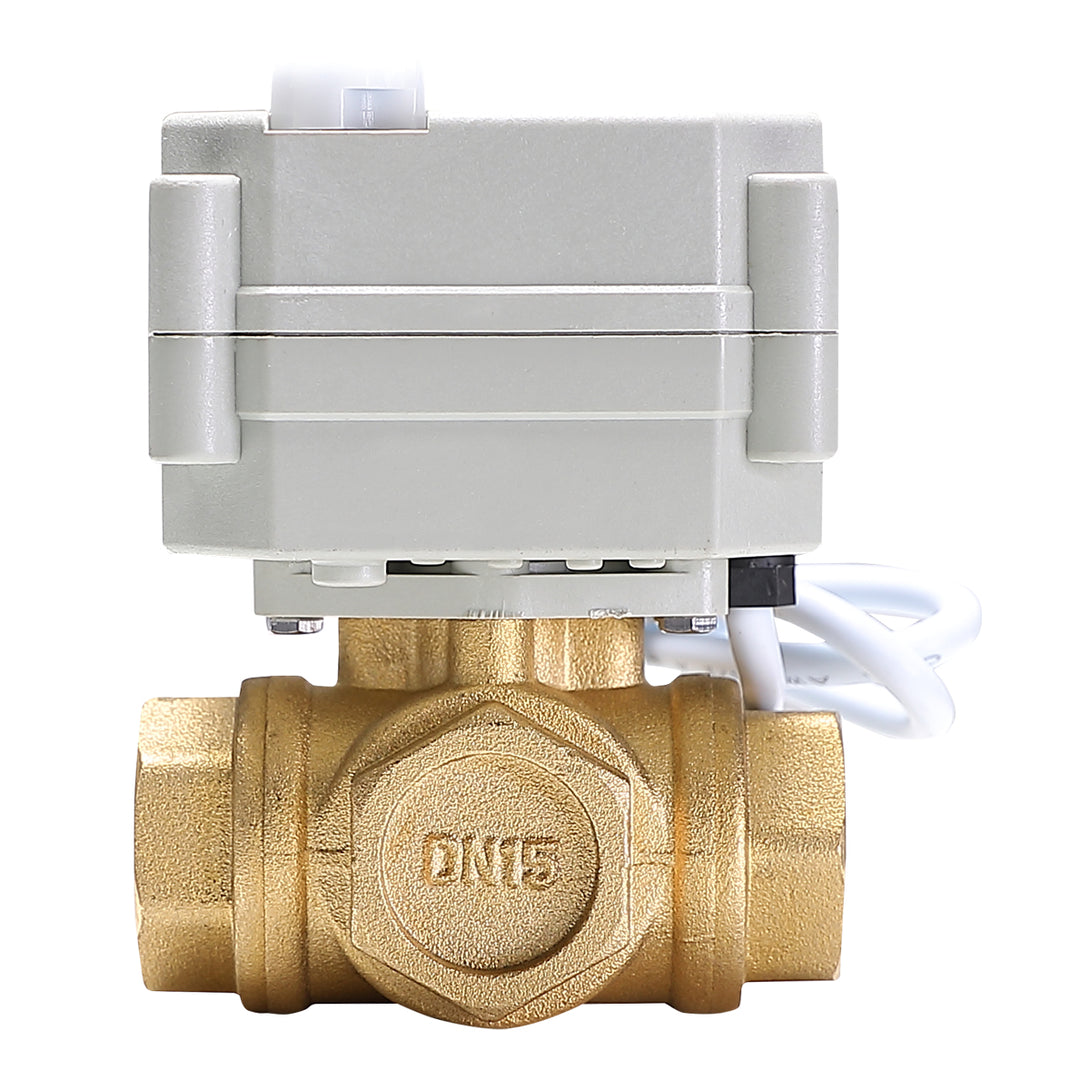

3 Way 1/2" NPT Reduce Bore(0.47in) Brass Valve Body;
Wide Range Working Voltage Design, Work From  9-36VDC;
Limit Switches Bulid-In, Auto Cut Off Current When Arrived At Place(0Ma);
2 Wires Control Normally Closed And Installed With Position Feedback Wires;
Build In Capacitor Return, Will Return To Original Position When Power Off/Power Failed;
